2023 BRANDT 65-TON HYD RGN H650 W/ SPREADER AND JEEP - Sold

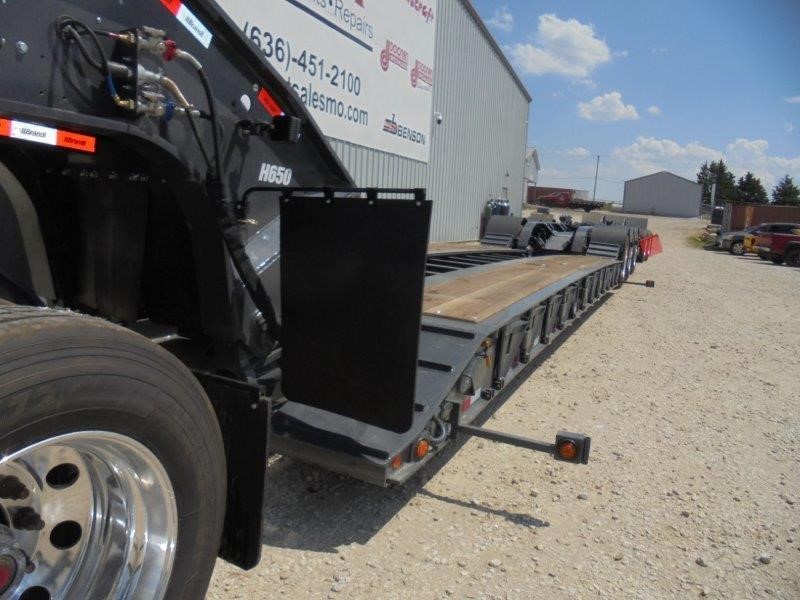

New 2023 Brandt H650 2+3+2 65-ton Hydraulic RGN Set up loaded with nice options and ready to load.
This is a full Jeep, Trailer and Booster 2+3+2 set up. Brandt H650 65 ton RGN- Rated for 130,000#’s in 16’ span. 26’ x102 wide flat level deck with a modular bogey connection. 24” loaded deck height at 8” ground clearance, Upper Coupler Height 50”, Swing Clearance 112″, 88″ , Hydraulic Gooseneck Extension provides additional Swing Clearance to 172″, 154″ Loaded Ground Clearance Adjustable to 3 settings: 6.5″, 8″, 9.5″Hydraulic Operated Shim Legs, Hydraulic Operated Full Length Extra Wide Support Arm, Gooseneck Extension Lugs, Gooseneck has Combo 14 hp EFI Gas Engine pony motor in Louvered Box, Two Pair D-rings on top Flange, D-rings and Chain Pockets on Front Ramps, Chain Pockets every 4′ down Outer Rail, Double Pair Chain Pockets at Back of Deck, 3 Pair Chain Pockets Inside Main Beams for Cross Chaining, Two Chain storage Baskets Behind Gooseneck, Frame Reinforced for Pin-On Tandem Booster, Pockets for Oversize/D-Sign, Suspension Capacity (3) x HT250 25,000 lb, 60”Axle spacing ,Axle Capacity (Nominal) 22,500 lb Per Axle, 5/8 Wall, Weather Sealed air system, Bolster Mounted Air Control Box Including Air Gauge, Regulated Air Override, 3-Position Ride Height Selection, Dump Valve and Spring Brake Release Valve, Air Connections for Booster, LED Lighting, 4″ Bumper Mounted Strobes with Switch in Control Box, OEM Weatherseal Harnessing, Rear 7-way Socket for Booster or Auxiliary Lighting, 6′ Rear Knuckle Trough , Outriggers 10″ Wide for use with 3″ Outrigger Board , 60″ Axle Spacing, Chian Lifts on Axle 2 and 3, Airbag Shutoffs, Rebound Limiter/Pin-up Lugs ,Hydraulic Flip Kit Hydraulic Flip for Gooseneck Extension, Swing-Out Lights – GN 1 pair on Gooseneck, (1)Pair Work Lights at Rear of Gooseneck, Removable Deck End Ramps, , Knuckle Trough Cover , Lockable Storage Box Lid Aluminum Lid for chain basket , Swing-Out Lights – Deck 1 Pair Front, 1 Pair Back, Removable Fenders Black HDPE, Clip in Over Axles, Battery Backup for Strobes, Steel Inners Aluminum Outside wheels, Tires 275 275/70R22.5
P25 – Brandt 25T Auto Shim Pin On Booster,
Capacity 50,000 lbs, Overall Length 20’2″, 3 Pair Chain Pockets for Lifting or Tie-Down, Weather Sealed Air system Controls Including Air Gauge, Common Air LED Lighting, 4″ Bumper Mounted Strobes with Switch in Control Box, Control Box Lighting, OEM Weatherseal Harnessing, Rear 7-way Socket for Auxiliary Lighting, Interaxle Spacing 14’7″,Automatic Shim, Automatic Relief, Articulated Frame Steering with Air Controlled Lock for Backing Up, Dual Landing Gear, Weather Sealed Hydraulic/Air Control Box, Air Powered Hydraulic Pump, Independent Cylinder Control for Hook-Up, Single Touch Travel Mode,
Axle Spacing 54″ , Steel Inners Aluminum Outers 8.25 x 22.5 Polished Alum, Steel, Tires 275 275/70R22.5 , Oversize Sign w/ Frame Aluminum Plate, Turnbuckle Securement ,
R40 – Brandt 40T Tandem Jeep, Capacity 80,000 lbs
Upper Coupler Height 50″, 2 Kingpin Position, D-ring for Lifting, 2 Pair Chain Pockets for Lifting or Tie-Down, Air Shut Off Ball Valves on Gooseneck, Weather Sealed Air Controls Including Air Gauge, Dump Valve, Spring Brake Release Valve, Remote Air Tank Drain Valves, LED Lighting, Weatherseal Harnessing, Sliding Fifth Wheel with 94″ of travel , Axle Spacing 49″ , Steel Inners Aluminum Outers 8.25 x 22.5 Polished Alum, Steel , Tires 275 275/70R22.5 Dark Grey Powder Coat on all steel materials, 2 Year Extended Warranty for entire set up.

Total empty weigh of all components is 43,720# per Cat Scale ticket

In Stock and ready for immediate sale, FOB Villa Ridge MO

Must be sold as complete package. – total price $364,900.00 FET Included
